Pre-engineered steel buildings in Delhi NCR

Factory-fabricated steel structures delivered and erected in 6–8 weeks. ISO 9001:2015 certified. Serving Ghaziabad, Noida, Haridwar & North India.

Delivery Time
0 -8wks
Cost saving vs RCC
0 %
Steel yield strength
0 Mpa
Projects delivered
0 +

Enquire Now

We’re here to help you with any inquiries, support, or project requirements.

    50+

    YEARS OF EXPERIENCE

    What is a PEB?

    Factory-made. Site-assembled.

    A pre-engineered building (PEB) is a steel structure designed, fabricated, and coated in a controlled factory environment, then transported to site and bolted together. Unlike conventional construction, every component arrives ready — no cutting, no field welding, no delays.

    How it works

    4 steps from brief to building

    1

    Design & engineering

    Structural analysis using advanced software. Drawings approved in days, not months. Designed to AISC standards.

    2

    Factory fabrication

    Components precision-cut and welded in a controlled facility. ISO-certified quality checks at every stage.

    3

    Delivery to site

    All components labelled and dispatched. Average delivery: 6–8 weeks from order to site — vs 20+ weeks conventional.

    4

    Bolt-up erection

    All connections are bolt-based. No field welding required except on very long span splices. Fast, safe, predictable.

    What we build

    Types of PEB structures we construct

    Every structure is custom-engineered to your span, height, load, and location. No two buildings are identical.

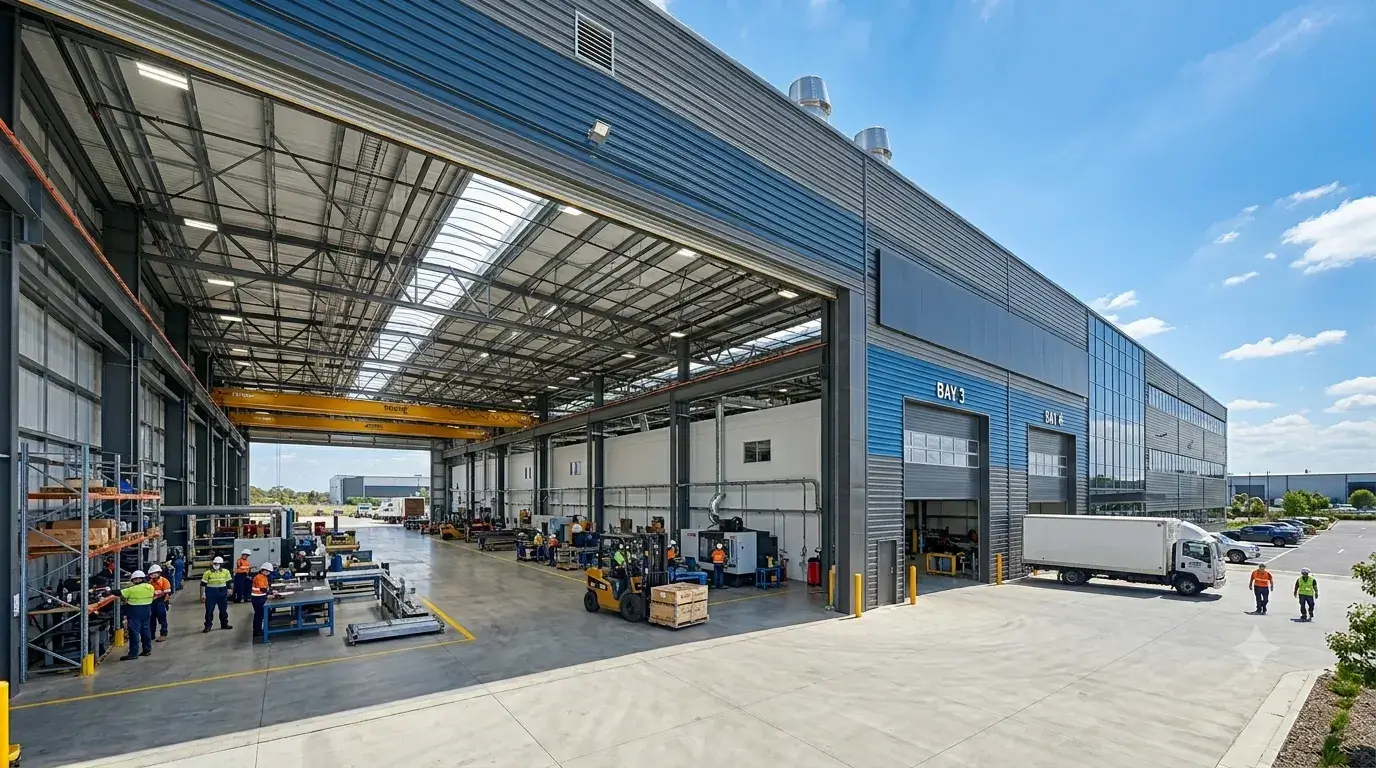

    Industrial shed

    Factories, workshops, and manufacturing units. Clear spans up to 60m+ with minimal internal columns.

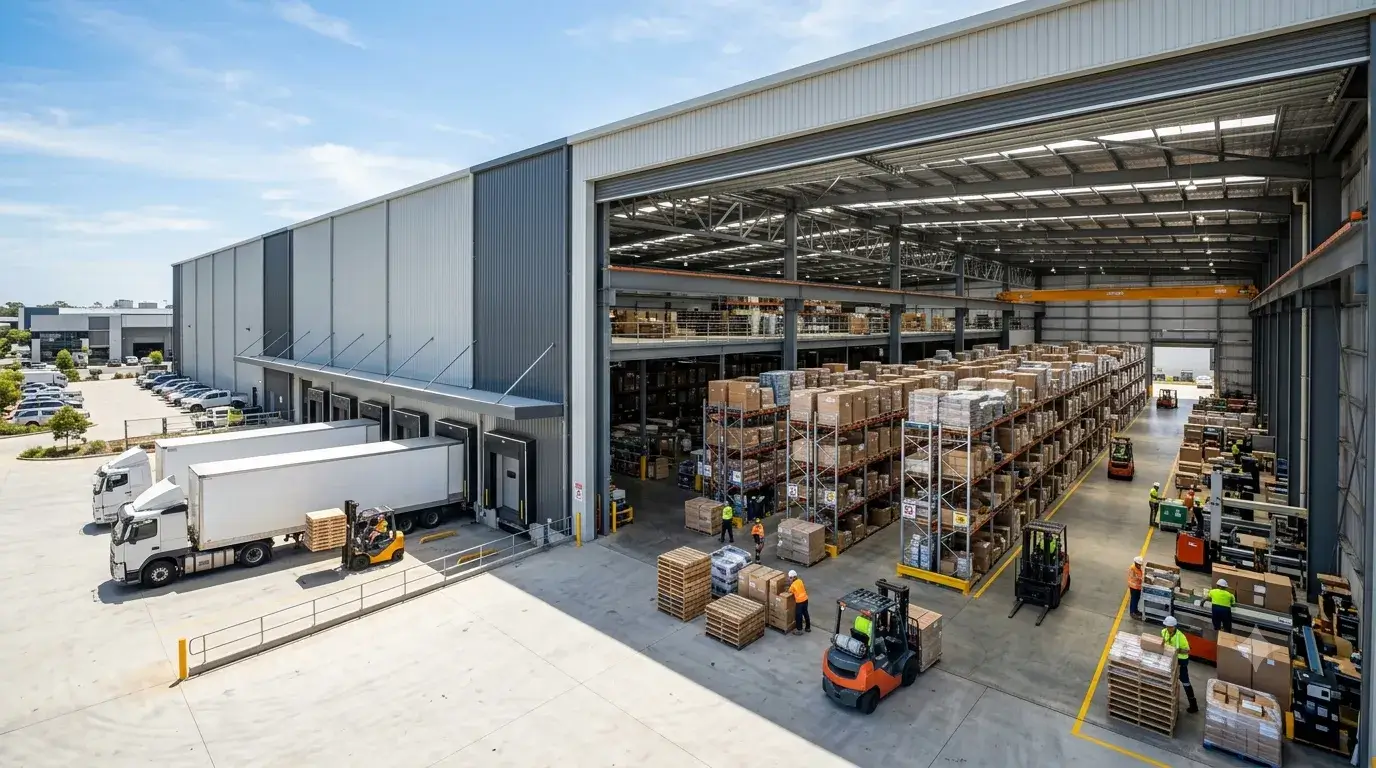

    Warehouse building

    Logistics and storage warehouses with large clear heights, mezzanine floors, and loading dock provisions.

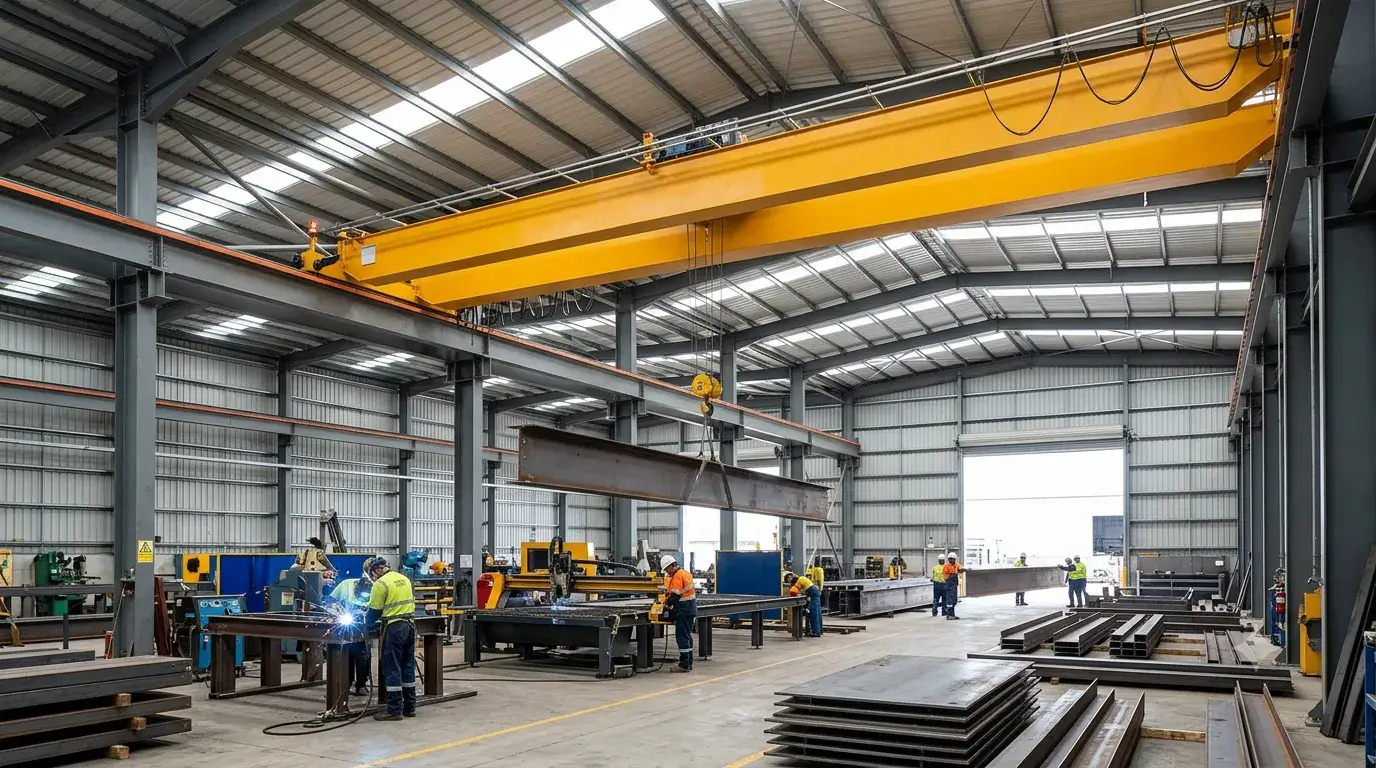

    Crane-integrated shed

    PEB structures pre-designed with crane columns, runway beams, and EOT crane bracket provisions from day one.

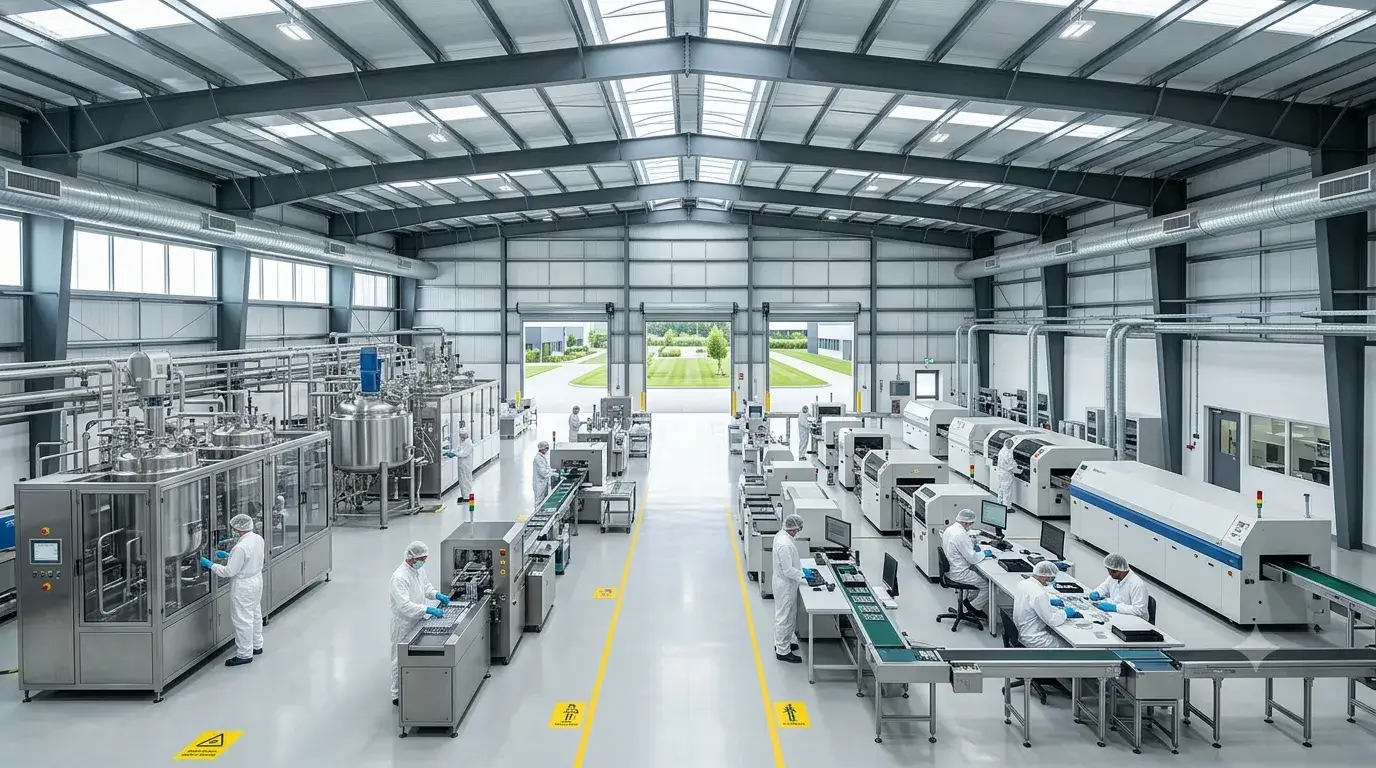

    Manufacturing plant

    Multi-bay structures for pharma, food, auto, and electronics sectors with clean-room compatible designs.

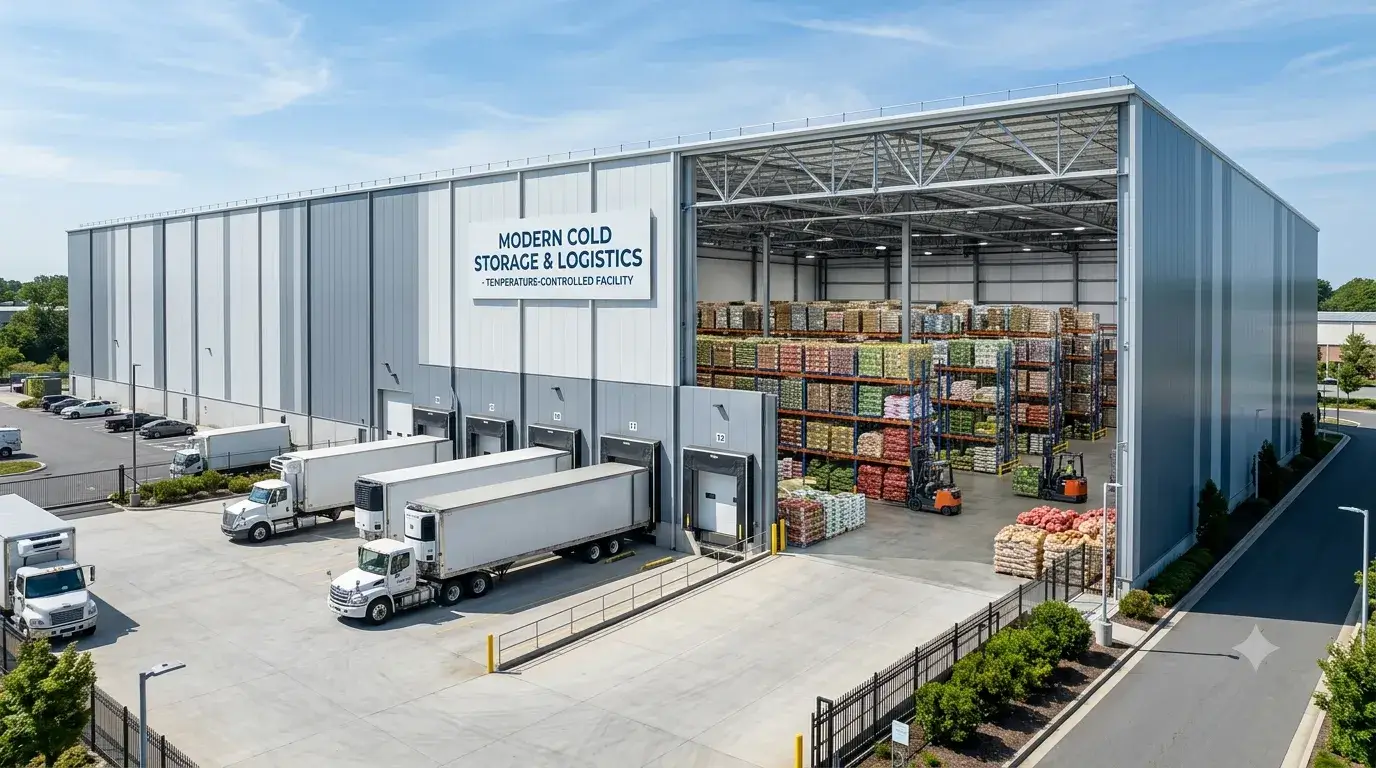

    Cold storage unit

    Insulated panel-ready PEB frames for temperature-controlled agri, dairy, and food storage facilities.

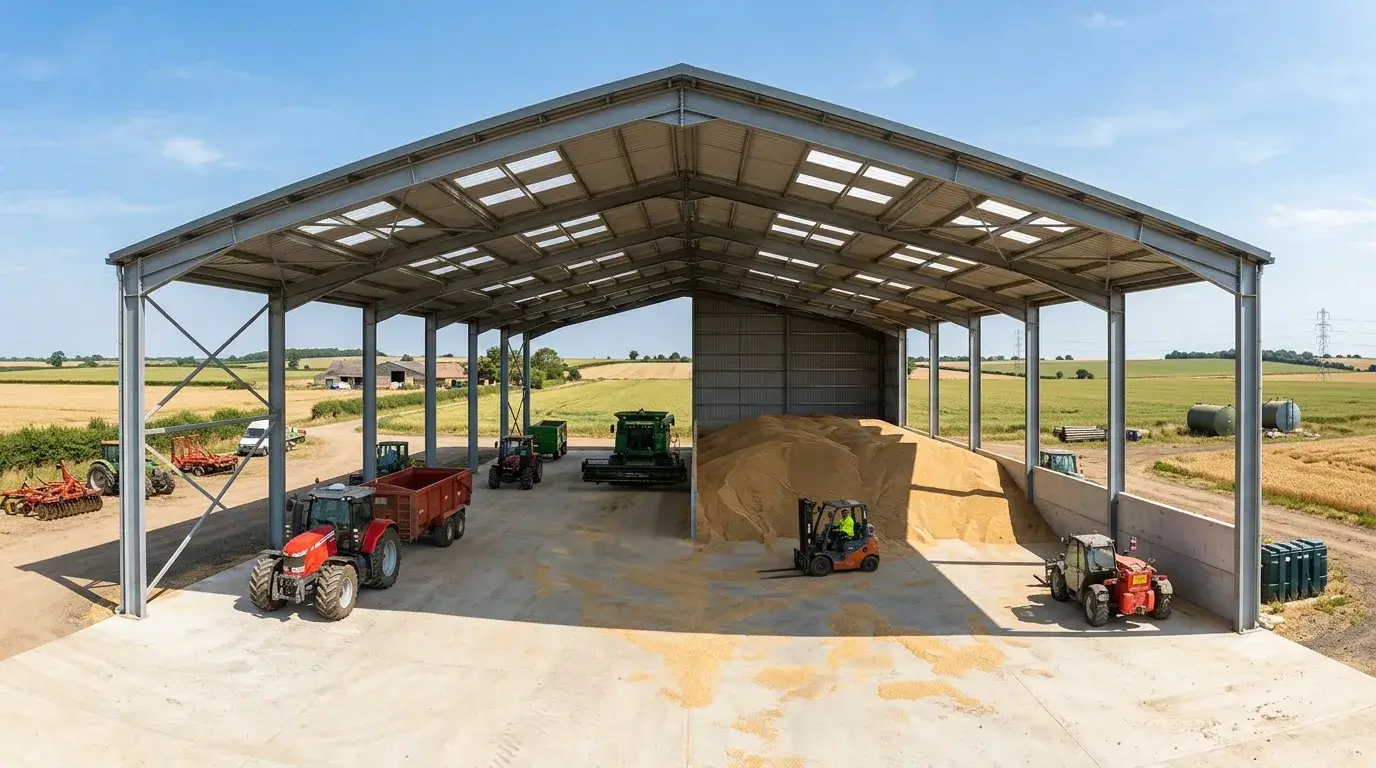

    Agricultural shed

    Large span grain and equipment storage. Open sides, ventilation provisions, and light foundations on rural soil.

    Technical specifications

    Built to precise standards

    Steel yield strength

    550 MPa panels · AISC frame design

    Clear span range

    Up to 90m+ (multi-span)

    Eave height

    4.5m to 20m+

    Panel gauge

    24GA / 26GA profiled sheets

    Coating

    AZ150 zinc-aluminium · 25μm paint

    Certification

    ISO 9001:2015 · AISC compliant

    Why choose PEB

    PEB vs conventional

    Feature

    PEB structure

    Conventional

    Delivery time

    6–8 weeks

    20–26 weeks

    Foundation

    Light, simple

    Heavy, costly

    Seismic resistance

    Flexible frame ✓

    Rigid, poor

    Future expansion

    Easy, low cost

    Difficult

    Overall cost

    Up to 30% less

    Higher

    Accountability

    Single vendor

    Multiple parties

    Frame configurations

    Frame types for every application

    Rigid frame

    Most popular · up to 90m span

    Single slope

    Lean-to / canopy buildings

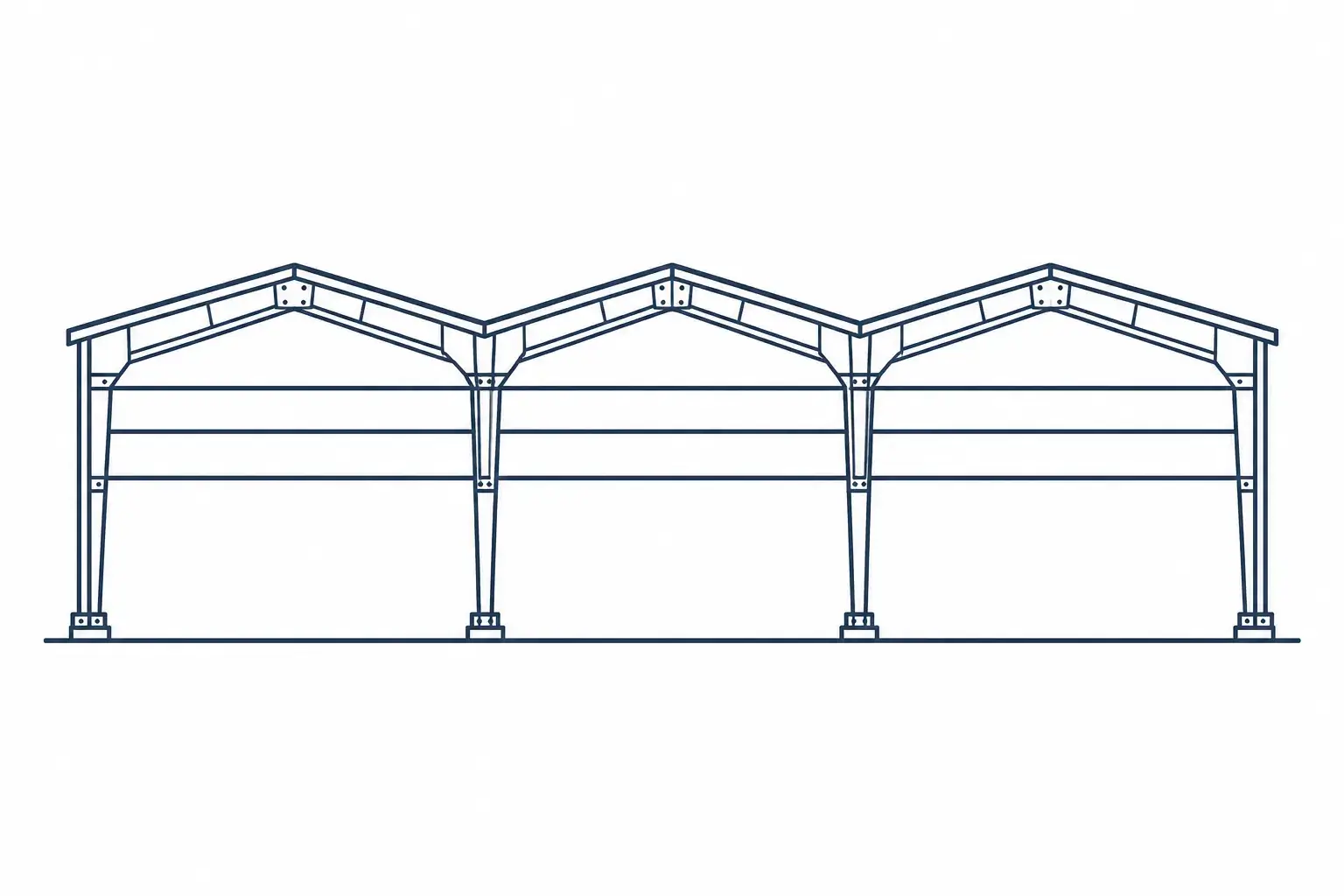

    Multi-span

    Large footprint buildings

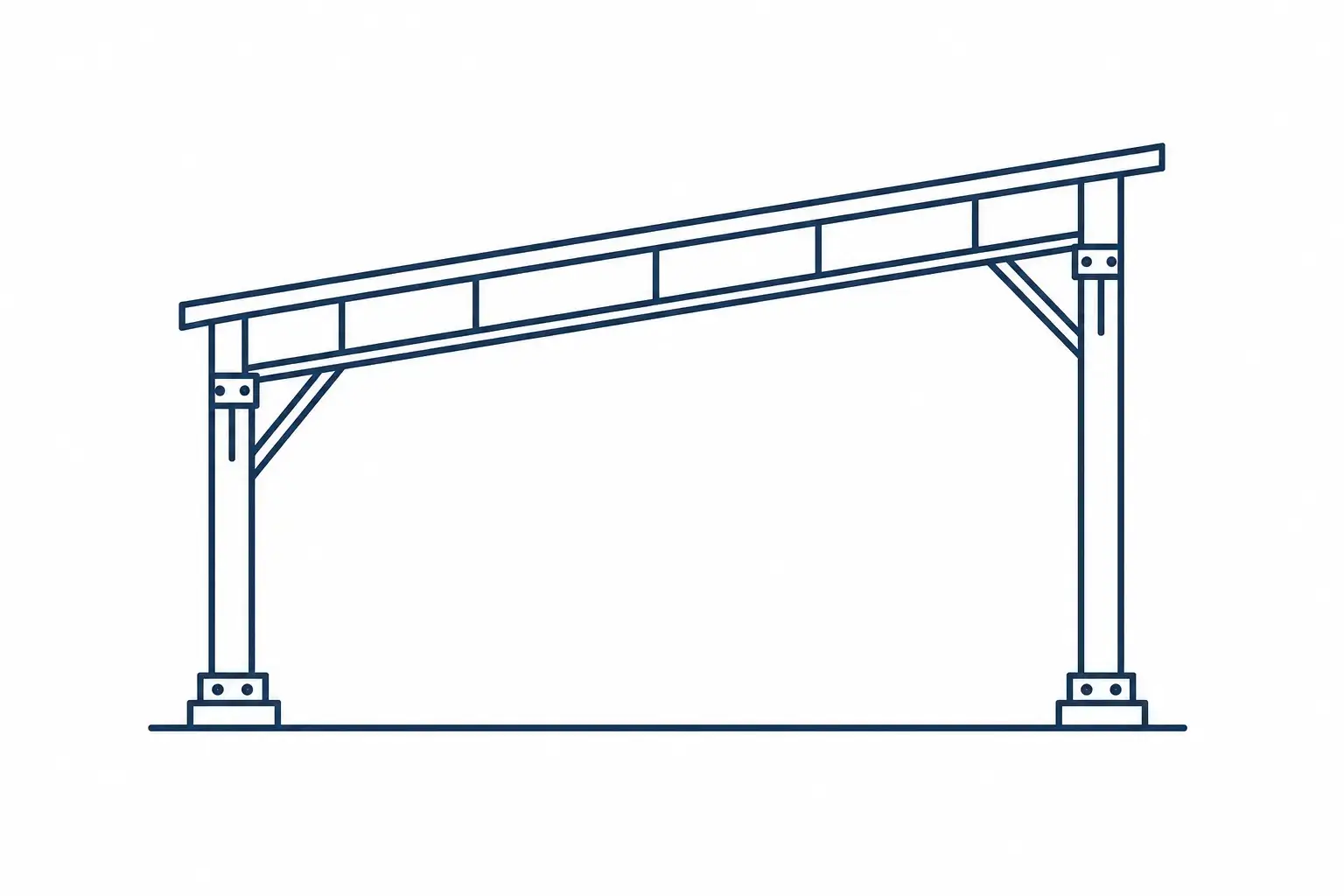

    Mono slope

    Space-saver configurations

    Beam & column

    24m–70m width range

    With lean-to

    Future expansion ready

    What's included

    Building components supplied as a system

    Primary structure

    Main frame

    Rigid/tapered columns & rafters, anchor bolts, base plates, endwall columns, portal & X-bracing

    Secondary structure

    Purlins & girts

    Z/C sections 120–300mm deep, eave struts, flange braces, sag rods. All roll-formed galvanised steel

    Roof system

    Roof cladding

    Profiled steel panels 26/24 gauge, AZ150 zinc-aluminium coating, 25-micron RAL colour paint. 1000mm coverage

    Wall system

    Wall panels

    Matching profiled wall cladding, corner trims, eave trims, masonry trims, and wall liner options

    Openings & access

    Doors & windows

    Roll-up doors (manual/electric), double sliding doors, personal walk doors, framed openings, fixed louvers

    Ventilation & light

    Roof accessories

    Polycarbonate skylights, ridge ventilators with bird mesh, power ventilators, roof monitors, eave gutters, downspouts

    Who we build for

    Industries we serve

    Warehousing & logistics

    E-commerce, 3PL, cold chain

    Manufacturing

    Auto, pharma, electronics, FMCG

    Pharmaceuticals

    Clean-room ready structures

    Food & agri

    Food processing, grain storage

    Power & infrastructure

    Substations, plant buildings

    Steel & heavy industry

    Crane-intensive facilities

    Our clients

    Trusted by 35+ companies across North India

    Patanjali Ayurved

    Alkem Laboratories

    Shivam Autotech

    Polyplex Corporation

    Apis India

    Saraswati Sugar Mills

    Gateway Rail Freight

    Nahar Industrial Enterprises

    Khanna Paper Mills

    Eicher Polaris

    Malhotra Rubbers

    La Opala RG

    Projects delivered across Uttar Pradesh, Uttarakhand, Haryana, Punjab, Himachal Pradesh & Rajasthan
    Common questions

    Frequently asked questions

    A typical pre-engineered building is delivered in 6–8 weeks from order confirmation to site. Conventional steel or RCC construction for the same footprint takes 20–26 weeks. Erection on site typically adds 2–4 weeks depending on size.

    Yes. Buildings can be designed from the start with integrated crane columns, runway beams, and bracing for EOT cranes up to 5 MT on brackets, and independent support systems for higher capacities. This is a speciality of our combined building + crane solution.
    PEB frames are ideal for mezzanine floor integration. Full multi-storey structures are possible but are more common as hybrid RCC + PEB systems. Mezzanine floors using galvanised steel deck, joists, and beams can effectively double your usable floor area.
    PEB structure costs vary by span, height, crane load, and location. A basic industrial shed starts around ₹250–₹350 per sq ft for the steel structure. Full turnkey including civil work ranges ₹450–₹800+ per sq ft. Request a quote for your specific requirements.
    A well-maintained PEB structure lasts 30–50 years. The 550 MPa galvanised panels with AZ150 zinc-aluminium coating and 25-micron paint provide exceptional corrosion resistance, minimising maintenance cost over the building's lifetime.
    PEB uses factory-fabricated tapered and variable-depth members optimised by software for each building's specific loads. Conventional steel uses standard hot-rolled sections from a catalogue. PEB typically uses 20–30% less steel for the same structural performance.

    CALL TO ACTION

    Get a free quote for your PEB project in Delhi NCR

    Site visit within 48 hours. Structural drawing within 7 days. ISO 9001:2015 certified.
